2.1 Precise light path control
Tight angle tolerance ensures accurate beam steering, image rotation and beam splitting without obvious optical deviation.

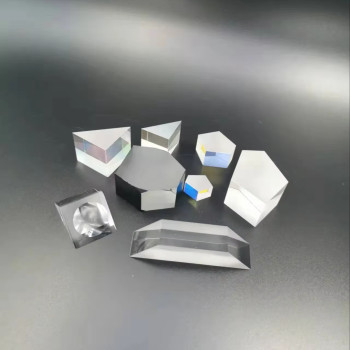

Custom Precision BK7 / K9 Optical Prisms | Right Angle, Penta, Dove Prism Custom Manufacturing
- group name
- Optical Prisms
- Min Order
- 1 piece
- brand name
- FELIX GLASS optical glass Manufacturing base
- model
- FG-CPOP-2026-2
- Nearest port for product export
- Shenzhen, Guangzhou
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 30 Jul 2026 21:44:56 GMT
Paramtents
Material BK7/K9, Fused Silica, Borosilicate Glass, Sapphire
Prism Type Right angle, penta, dove, wedge, roof, beam splitter, custom geometry prism
Size & Angle Tolerance Custom length, thickness, clear aperture, precision angle control
Optical Coating AR coating, reflective coating, UV/VIS/NIR beam splitter coating
Surface Quality MIL surface grade: 40/20, 20/10
Edge Treatment Plain flat edge, chamfering, black shading painting
Packging & Delivery
-
Min Order1 piece
Briefing
Custom BK7/K9 optical prisms. Right angle, penta, dove and beam splitter prisms for machine vision, laser and medical optical。
Detailed
Felix Glass manufactures custom optical prisms from BK7/K9 optical glass, fused silica, borosilicate glass and sapphire. We supply standard and tailor-made prisms for medical equipment, laser systems, industrial machine vision, scientific instruments and surveillance optical systems worldwide. We support drawing-based customization including right angle, penta, dove, wedge, roof, beam splitter and special custom geometry prisms. Services include precision CNC machining, high-quality optical polishing, and UV/VIS/IR multi-layer AR, reflective and beam splitter coatings. This product is classified under Optical Prisms & Optical Components to match engineer search intent for laser, machine vision and medical optical parts. All data shown are typical reference values. Final material, coating, dimension, optical indicators and tolerances shall be confirmed based on official engineering drawings and project specifications. Our precision optical prisms solve common engineering challenges including imaging deviation, light attenuation, optical distortion, low transmittance and unstable optical performance under continuous long-term operation. Premium raw substrates paired with customized anti-reflection coatings reduce light loss and improve system imaging contrast. Multiple optical glass substrates available to match UV, visible and infrared working spectrum and environmental requirements. Check more optical components in the Felix Glass product catalog. We produce a full range of conventional prisms and accept special-shaped geometry development according to customer optical design drawings. Special shapes and non-standard angles are supported after manufacturability evaluation based on CAD drawings. Felix Glass accepts customer CAD engineering drawings to process all kinds of optical prisms, with controllable dimensions, surface flatness, angle tolerance and edge processing. Strict angle tolerance grinding to guarantee consistent light deflection performance in optical systems. Precision chamfering, flat edge and black shading treatment to avoid stray light interference. AR, reflective, beam splitter coating for UV, visible and infrared wavelength bands. Optical surface defect testing to meet industrial and high-end instrument MIL standards. More manufacturing capability information available on About Us. Different optical substrates have unique transmission range, thermal performance and cost characteristics, selected according to equipment working environment and spectrum. BK7 / K9 Optical Glass: High clarity, cost-effective choice for visible light imaging, machine vision and laboratory instruments. Fused Silica: Low thermal expansion, high laser damage threshold, suitable for high-power laser and UV optical equipment. Borosilicate Glass & Sapphire: High mechanical strength, scratch resistance for harsh industrial environments. Material selection suggestions can be found in the Felix Glass blog. Optical prisms are core components for beam transmission and image adjustment across multiple precision optical industries. Coating scheme and surface quality will be optimized according to your specific application environment. Surface reflection causes light loss, ghost images and reduces imaging resolution. Custom optical coatings effectively improve light utilization efficiency. We supply single-layer and multi-layer coatings covering ultraviolet, visible, near-infrared bands, including anti-reflection coating, reflective mirror coating and beam splitter film systems. Return to the Felix Glass home page to view all precision optical components. The following options cover conventional customized requirements. Final manufacturability will be reviewed after receiving customer engineering drawings. After drawing review, material and process scheme are confirmed, the production cycle is as follows: For optical performance, assembly and environmental test verification. Process stability verification before formal mass production. Actual delivery time subject to order quantity, raw material status and coating schedule. Adopt shockproof foam separation and moisture-proof export carton packaging, suitable for sea freight and air freight transportation. The following contents describe conventional performance. Specific indicators need to be confirmed according to project drawings and testing standards. Fused silica is preferred due to low absorption and high laser damage threshold. Send your laser wavelength and power parameters for evaluation. Yes. We evaluate processing feasibility based on your CAD drawings, size and optical tolerance requirements. Yes. Spectral transmittance test data can be provided for batch goods as required by customers for equipment qualification review. Multiple AR coating options for visible and near-infrared bands to improve light transmission efficiency. Angle tolerance depends on prism size. Share your drawing for precise process quotation and tolerance evaluation. Felix Glass has complete in-house processing capacity to support prototype, trial order and long-term mass OEM supply for optical equipment manufacturers. Please provide CAD drawing, required substrate material, prism dimension, target spectrum, coating requirements, surface quality standard, annual demand quantity and test specifications. Our optical engineers will evaluate manufacturability and provide quotation & sample plan quickly.
Felix Glass Co., Limited · Model FG-PRISM-001
1. Custom Precision Optical Prism Overview
Material & optical advantages
2. Core Advantages of Custom Optical Prisms
2.2 High optical transmittance
2.3 Wide material selection
Available prism types
3. Standard & Custom Prism Geometries
Drawing-based precision manufacturing
4. Custom CNC Machining & Polishing Standards
Precision angle control
Edge processing
Optical coating service
Surface quality inspection
Optional optical substrate materials
5. Optical Material Selection Guide
Application challenges solved
6. Main Application Industry Solutions
Industrial Machine VisionStable imaging performance for automated visual inspection and positioning equipment.
Medical Optical DevicesLow-distortion prisms for endoscopy and clinical diagnostic imaging systems.
Laser & Research EquipmentLow-absorption substrates for laser beam shaping and spectroscopy instruments.
Anti-reflection optimization
7. Custom Optical Coating Solutions
Custom specification list
8. Optional Customization Parameters
Specification item
Available options
Project confirmation
Substrate Material
BK7/K9, Fused Silica, Borosilicate Glass, Sapphire
Working spectrum, temperature environment, cost budget
Prism Type
Right angle, penta, dove, wedge, roof, beam splitter, custom geometry
Optical path design, light deflection requirement
Size & Angle Tolerance
Custom length, thickness, light pass aperture, precision angle control
System optical accuracy requirements
Optical Coating
AR coating, reflective coating, beam splitter coating for UV/VIS/NIR
Target wavelength, transmittance & reflectance target
Surface Quality
40/20, 20/10 MIL optical surface grade
Imaging system sensitivity requirements
Edge Treatment
Flat edge, chamfer, black shading paint processing
Assembly structure and stray light suppression demand
Sampling & mass production cycle
9. Lead Time for Samples & Volume Orders
Prototype samples: 10–14 working days
Trial small batches: 16–22 working days
Mass production orders: 25–35 working days
Technical FAQ
10. Optical Prism Technical Frequently Asked Questions
Which material to choose for high-power laser prism?
Can custom special-shaped non-standard prisms be processed?
Can you provide optical transmittance test reports?
What anti-reflection coatings are available for BK7 prisms?
What is the minimum achievable prism angle tolerance?
Can long-term stable mass supply be guaranteed?
RFQ preparation checklist
Send project requirements
Send Your Optical Prism Drawing For Custom Quotation
