Hard Viewing Surface
Mohs 9 hardness helps resist scratching from routine handling and airborne particles, subject to cleaning method and edge protection.

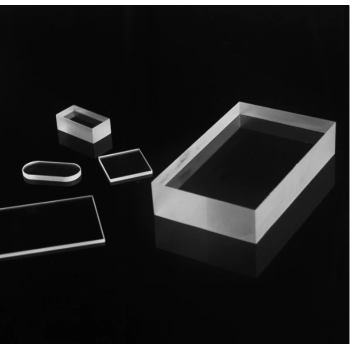

High Hardness Sapphire Observation Window for Furnace Chamber
- group name
- Sapphire Optical Lenses
- Min Order
- 1 piece
- brand name
- FELIX GLASS optical glass Manufacturing base
- model
- FG-SAPP-WIN-FURN-001
- Nearest port for product export
- Shenzhen, Guangzhou
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Tue, 28 Jul 2026 16:48:30 GMT
Paramtents
Raw Material Single Crystal Sapphire (Al₂O₃)
Core Performance Mohs 9 High Hardness, Long-term 1800℃ Heat Resistance
Available Shapes Rectangle / Round / Oval / Curved / Drilled Custom Sight Glass
Surface Treatment Double-sided Optical Polishing, Custom Edge Machining
Main Application Industrial Furnace, Metallurgy, Boiler, Furnace Camera Monitoring
Custom Service OEM ODM Custom Size, Drilling / Sinking Hole Processing
Packging & Delivery
-
Min Order1 piece
Briefing
Custom sapphire furnace observation windows with polished surfaces, drawing-based shapes, and engineering review.
Detailed
Attention · Furnace viewing conditions
Product Introduction
High Hardness Sapphire Observation Window for Furnace Chamber
Felix Glass Co., Limited supplies single-crystal sapphire observation windows for furnace cameras, optical inspection systems and process-viewing assemblies. Sapphire combines a hard polished surface with optical transmission across selected ultraviolet, visible and near-infrared bands.
For furnace-camera and process-viewing systems, sapphire offers Mohs 9 surface hardness and stable optical access under sustained high heat. The allowable operating temperature of the finished viewport still depends on window dimensions, mounting stress, pressure differential, thermal gradients, seals, coatings and the complete chamber design, so every project requires engineering review.
Single-crystal Al₂O₃ Observation and sensing Drawing-based supply
Explore Sapphire Optical Glass
Attention · Direct answer
Why Use Sapphire for a Furnace Observation Window?
Thermal Application Fit
Sapphire may suit elevated-temperature viewing when the complete window, coating, seal and mount are designed for the operating cycle.
Defined Optical Band
Material thickness and optional coating are selected around the camera, detector or inspection wavelength rather than a universal transmission claim.
Interest · Original specification topic retained
Customizable Specifications
| Material | Single-crystal sapphire (Al₂O₃) |
|---|---|
| Shapes | Rectangular, round, oval, curved, drilled, long-strip and other drawing-defined forms |
| Original size range | 5–500 mm with 0.5–50 mm thickness, subject to geometry and process review |
| Machining options | Drilling, counterbore or recessed-hole features, chamfering and custom edge machining |
| Surface treatment | Double-side optical polishing with project-defined flatness, parallelism and surface quality |
| Optional coating | Anti-reflection coating evaluated for wavelength, angle, temperature and cleaning conditions |
Curved configurations and all dimensional ranges require feasibility confirmation. Explore related custom optical components for additional geometry references.
Interest · RFQ definition
Optical and Mechanical Inputs to Confirm
Clear aperture and outside dimensionsWindow thickness and edge profile
Working wavelength and detector typeAngle of incidence and coating target
Operating and peak temperaturesHeating and cooling ramp rate
Pressure differential and chamber atmosphereMounting, seal and cleaning method
Surface quality and flatness criteriaQuantity and inspection documentation
Desire · Original application order retained
Wide Application Fields
Industrial Furnaces
Viewing ports for ovens, vacuum sintering furnaces and annealing equipment.
Chemical Processing
Observation positions in reactors where the window material is compatible with the stated chemicals and temperature.
Metallurgy
Monitoring of smelting and molten-metal processes through a protected optical path.
Optical Inspection
High-temperature microscopes, cameras and optical detection equipment.
Boilers and Vessels
Flange sight-glass and pressure-vessel viewing assemblies designed around the required pressure rating.
Additive Manufacturing
Observation of high-temperature metal forming chambers and related process equipment.
Browse the sapphire optical window solutions to compare other optical materials and component formats.
Desire · Integration planning
01
02
03
04
Furnace Integration and Risk Review
Define the Environment
Document temperature cycle, atmosphere, pressure, deposits and cleaning exposure.
Check the Optical Path
Match sapphire thickness and coating to the source, detector and incidence angle.
Review the Mount
Allow for thermal expansion, edge loading, seal compression and replacement access.
Set Acceptance Criteria
Agree on dimensions, surface condition, optical tests and documentation before production.
Desire · Original supplier topic retained
Our Advantages
- Prototype, small-batch and repeat-production support
- Drawing review for shape, drilling, recesses, chamfers and edge details
- Inspection planning for dimensions, flatness, surface condition and transmission when specified
- Separated protective packaging selected for part geometry and shipment quantity
- English material and inspection documentation discussed during quotation
Lead time is confirmed after material, geometry, coating, quantity and inspection requirements are reviewed. Learn more about Felix Glass Co., Limited.
Action · Original inquiry topic retained
Send Your Drawing
Inquiry Guide
Send the drawing, dimensions, working and peak temperatures, wavelength, chamber atmosphere, pressure, mounting method, coating target, inspection needs and quantity. The engineering team will review feasibility and identify any missing information before quotation.
Contact the Engineering Team
Action · Buyer questions
Sapphire Furnace Window FAQ
Can the window operate continuously at 1800°C?
The original listing states a long-term target of 1800°C, but this is not a universal assembly rating. Size, thermal gradients, pressure, mount, seal and coating must be evaluated for the actual furnace.
Can drilled or recessed features be machined?
Drilling, counterbore-style recesses, chamfers and custom edges can be reviewed from a dimensioned drawing. Feasibility depends on feature size, location, thickness and edge distance.
Is anti-reflection coating always recommended?
No. The decision depends on wavelength, angle of incidence, temperature, atmosphere, cleaning method and allowable reflection.
What should be specified for a pressure vessel?
Provide the pressure differential, temperature cycle, clear aperture, unsupported span, mounting and seal design. The complete assembly rating is not determined by the sapphire plate alone.
