Core Pain Points We Solve
Low-purity quartz contains bubbles and striae, causing light distortion for precision optical systems
Ordinary glass fails under high temperature and rapid thermal shock working conditions
Single material grade cannot cover deep UV, general UV and infrared multi-spectrum demands
Difficult to realize irregular shapes, drilling, grooving and customized optical coating
Key Features
Fully Customized Dimensions & Shapes
No fixed standard sizes. We cut quartz plates according to customer drawings, samples or parameter requirements, including irregular special outlines for unique equipment installation.
Ultra-High Optical Purity
Bubble-free and striae-free fused silica material ensures stable, distortion-free light transmission for precision optical systems.
Excellent Thermal Stability
Near-zero thermal expansion delivers strong thermal shock resistance, suitable for long-term operation under high and fluctuating temperatures.
Full Spectrum Light Transmission
Covers deep ultraviolet, visible light and mid-infrared bands to meet multi-band optical design demands.
Strong Chemical Inertness
Resist most acids, alkalis and organic solvents, perfect for chemical laboratories and corrosive industrial working environments.

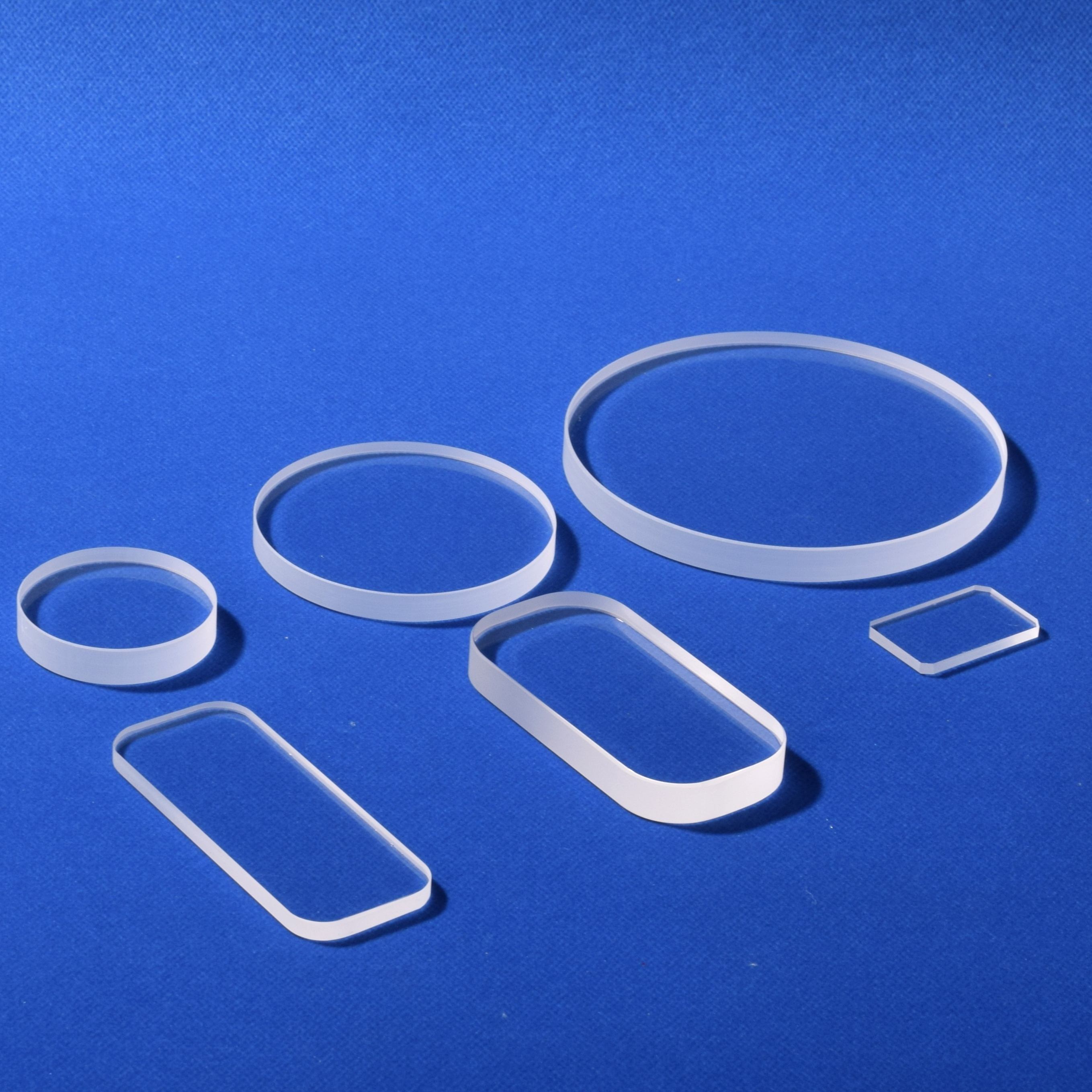

Precision Custom Machining
Custom drilling, grooving and edge chamfering services, matched with optical-grade polishing to reach strict flatness and parallelism tolerances.
Technical Specifications
| Property | Value |
|---|---|
| Material | High Purity Fused Silica |
| SiO₂ Purity | ≥99.99% |
| Density | 2.20 g/cm³ |
| Refractive Index | 1.458 @ 587.6nm |
| Thermal Expansion Coefficient | 5.5 × 10⁻⁷ /°C |
| Softening Point | 1730°C |
| Annealing Point | 1180°C |
| Continuous Working Temperature | 1100°C |
| Instant Temperature Resistance | 1300°C |
| Transmittance Range | 185nm–3500nm |
| Average Transmittance | >90% |
| Surface Quality | 60/40, 40/20, 20/10 |
| Optical Flatness | λ/2, λ/4, λ/10 |
| Custom Thickness | 0.5mm–50mm |
| Custom Shapes | Round, square, rectangular, oval, irregular special outlines |
| Processing | Custom cutting, drilling, slotting, chamfering, double-sided polishing |
| Optional Coating | AR, UV anti-reflection, IR transmission coating |
Product Types
JGS1 Deep UV Custom Quartz Glass Plate
Wavelength Range: 185nm–2500nm
Suitable for: Excimer laser equipment, Semiconductor photolithography, Deep UV sterilization devices, UV spectrum detection instruments
JGS2 General UV Custom Quartz Glass Plate
Wavelength Range: 220nm–2500nm
Suitable for: Laboratory optical test equipment, UV curing production lines, Industrial optical inspection devices, General optoelectronic equipment

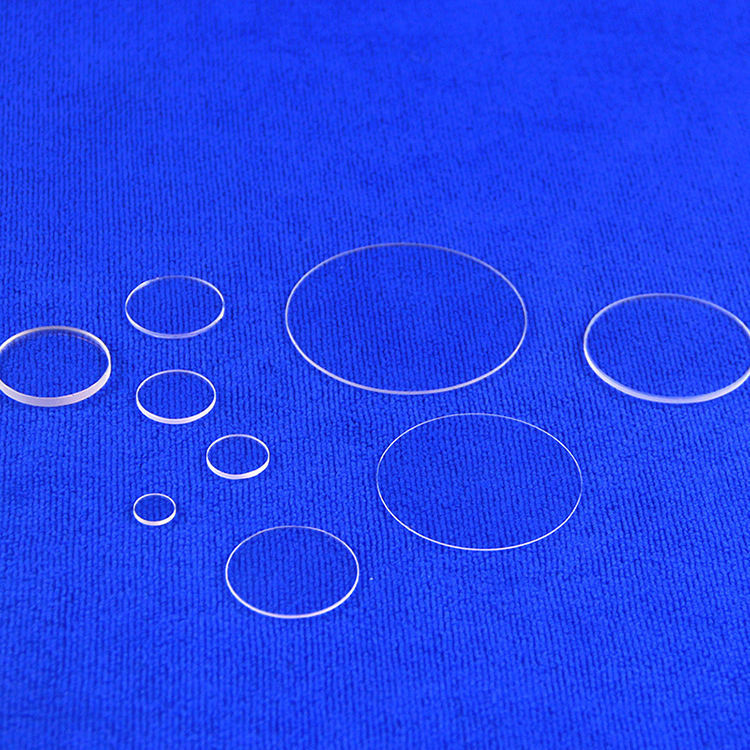

JGS3 Infrared Custom Quartz Glass Plate
Wavelength Range: 260nm–3500nm
Suitable for: Infrared thermal imaging systems, High-temperature furnace observation windows, Aerospace infrared optical components, Thermal sensing instruments
Applications
- Semiconductor wafer processing and photolithography equipment
- All types of UV laser and industrial laser processing equipment
- UV sterilization and UV curing automated production machines
- Laboratory analytical instruments and optical testing platforms
- Infrared thermal imaging and temperature sensing equipment
- Medical optical disinfection and diagnostic devices
- Aerospace and defense optical assemblies
- High-temperature industrial furnace sight observation windows
Full Customization Service
Felix Glass offers one-stop OEM & ODM custom service for quartz glass plates:
- Custom size, thickness, length and width
- Custom special shapes, irregular outlines and cutouts
- Precision processing: drilling, slotting, edge grinding and chamfering
- Single-sided or double-sided optical polishing
- Custom wavelength-matched AR, UV or IR anti-reflection coatings
- Strict custom tolerances for flatness, parallelism and surface roughness
Support small-batch prototype trial production and large-volume mass orders.

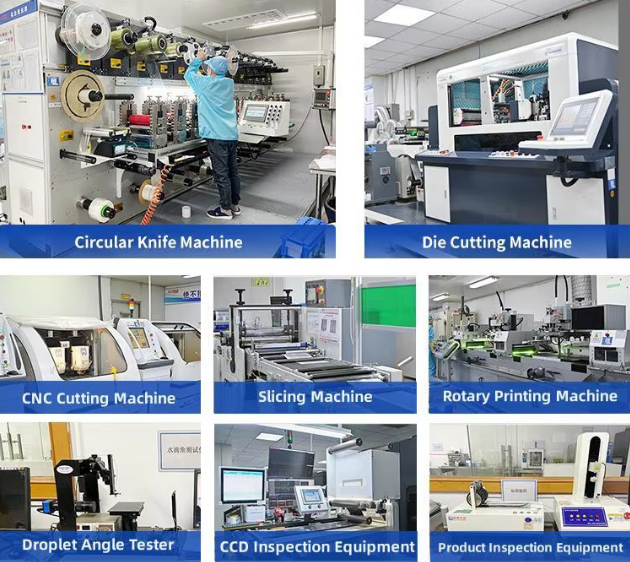

Precision CNC Machining
Optical Grade Polishing
Why Choose Felix Glass
15+ Years Export Experience
Specialized custom quartz glass plate manufacturer
ISO 9001 Certified Factory
Complete optical quality inspection system
Complete JGS Material Grades
JGS1/JGS2/JGS3 cover all spectral applications
Advanced Processing Equipment
Precision cutting, polishing and testing equipment
Global Industrial Client Service
Fast samples & stable bulk delivery cycle
Frequently Asked Questions
Q1. What information do I need to provide for custom quartz plates?
A: You can offer dimension parameters, drawings, physical samples, required surface flatness and coating demands for quotation and production.
Q2. What shapes can you customize?
A: Round, square, rectangular, oval and all irregular special outlines based on your design.
Q3. What is the maximum temperature for continuous use?
A: Custom quartz plates work stably at 1100°C continuously and withstand instant 1300°C high temperature.
Q4. Can I order small prototype samples before mass production?
A: Yes, we support small trial batches for performance testing and verification.
Q5. Which JGS grade should I select?
A: JGS1 for deep UV laser & lithography; JGS2 for lab & general UV equipment; JGS3 for infrared thermal systems.
Q6. Do you provide anti-reflection coating on custom plates?
A: AR, UV and IR targeted coatings are all available as custom options.
Q7. Are custom quartz plates resistant to thermal shock?
A: Thanks to ultra-low thermal expansion coefficient, they perform well under rapid temperature changes without cracking.
Q8. Can you drill holes or slots on custom quartz sheets?
A: Precision drilling, slotting and edge chamfering are included in our custom processing service.
Q9. What surface quality standards can you reach?
A: 60/40, 40/20 and high-precision 20/10 MIL standard surface finishes are optional.
Q10. Is OEM and ODM customization available?
A: We fully support customized production according to customer technical specifications and drawings.
