Uneven spherical surface leads to image distortion & ghosting under strong sunlight
AR Coated BK7 Optical Dome Cover | High Transmittance Custom Glass PTZ Security Cover
- FOB Price
US $5.995 - 99 piece
US $4.85100 - 999 piece
US $3.891000 - 4999 piece
US $2.885000 - 9999 piece
- group name
- PTZ Surveillance Dome
- Min Order
- 5 piece
- brand name
- FELIX GLASS optical glass Manufacturing base
- model
- FE-GXQZ-0100291
- Nearest port for product export
- Shenzhen, Guangzhou
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sat, 15 Aug 2026 10:18:50 GMT
Paramtents
Light Transmittance: ≥99% (AR Coated)
Thickness: 2.0mm / 3.0mm / 4.0mm (Customizable)
Shape: Hemisphere / Dome (Customizable)
Edge: Polished / Flanged (Customizable)
Packging & Delivery
- 50cm x50cm x30cm
-
Min Order5 piece
Briefing
High transmittance BK7 optical glass dome cover, AR coated PTZ ball cover with polished edge, custom size OEM quote in 24H.
Detailed

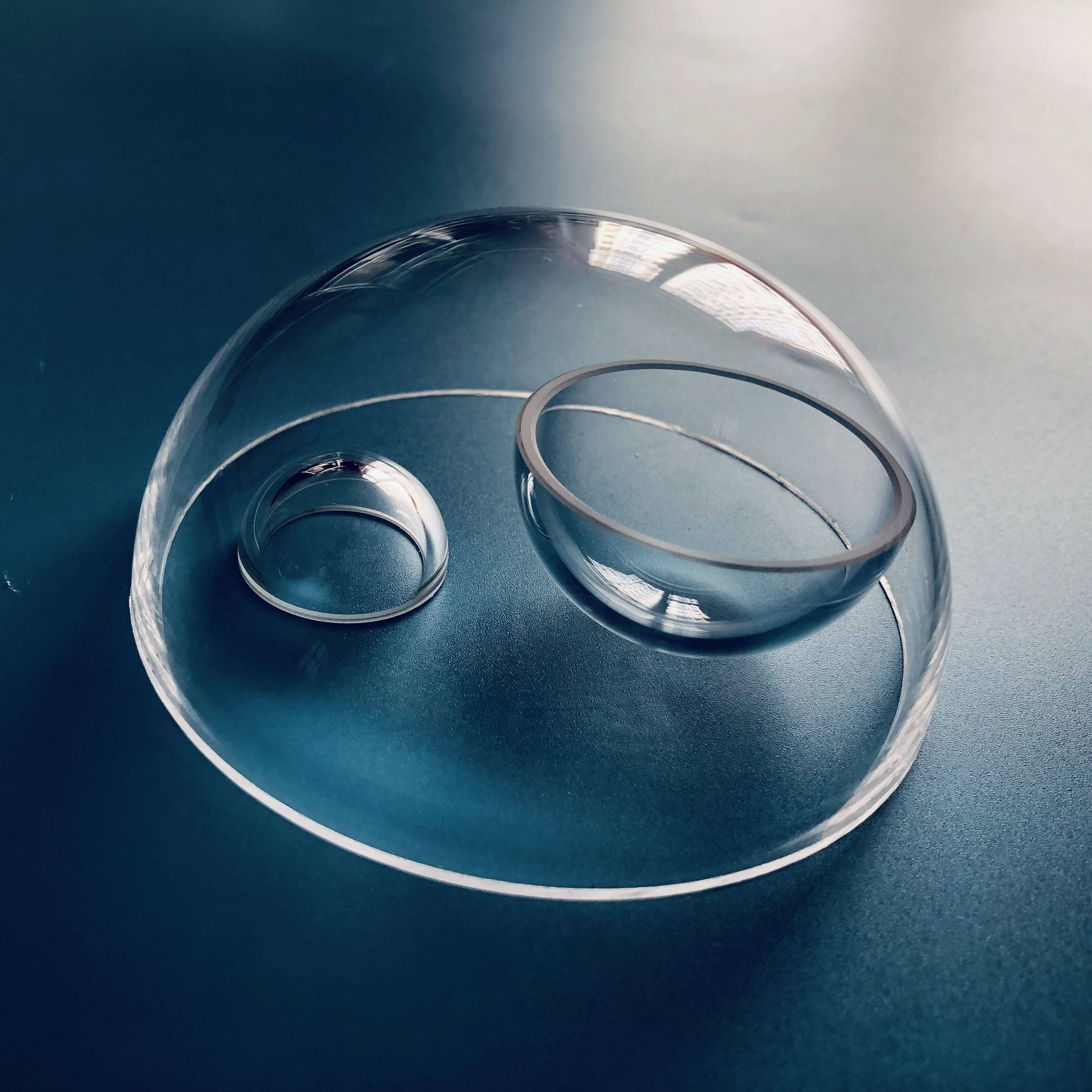

Felix Glass Co., Limited manufactures custom AR coated BK7 optical dome covers designed for PTZ speed dome security cameras, traffic monitoring equipment and outdoor machine vision systems. Our precision polished spherical BK7 optics adopt anti-reflection coating to suppress ghosting and boost light transmission, delivering stable 24/7 surveillance imaging performance. Poor coating uniformity causes inconsistent transmittance across monitoring field of view Limited customization: hard to match special flange size, composite multi-layer coatings Flat optical windows cannot satisfy the 360° pan-tilt viewing requirements of PTZ cameras. The spherical BK7 dome protects internal lens assemblies from wind, rain and dust. Uniform spherical curvature maintains consistent imaging quality during camera rotation. Visible-band AR coating eliminates surface reflection and glare to capture clear surveillance footage under variable outdoor lighting conditions. Premium K9/BK7 optical glass with controlled surface finish, delivering stable optical performance for visible-light security surveillance systems. Visible spectrum anti-reflection coating minimizes surface reflectivity, improves light throughput and eliminates ghost reflections for outdoor monitoring equipment. Dome diameter, spherical radius, wall thickness, flange edge profile and coating specifications are manufactured strictly according to customer engineering drawings before mass production. BK7 / K9 optical glass serves as the baseline material, offering a cost-effective standard solution for commercial outdoor PTZ surveillance. Sapphire and fused silica domes are available as upgraded alternatives when enhanced abrasion resistance or extended spectrum transmission performance is required. Field operating conditions determine final dome geometry, coating scheme and acceptance criteria. Proper spherical profile and optical coating guarantee reliable long-duration surveillance performance for outdoor vision equipment. Suitable for campus, parking lot and urban security pan-tilt cameras requiring full 360° rotating monitoring coverage. Roadside monitoring equipment adopts weather-resistant dome cover to protect internal lenses against wind, dust and rainfall. Port, warehouse and factory outdoor surveillance vision systems requiring continuous round-the-clock operation. Verify dome diameter, sphere radius, wall thickness, flange geometry, optical clear zone and mounting structure. Select BK7 glass blank and calculate machining allowance according to customer specified dome geometry parameters. CNC curve grinding followed by precision surface polishing to meet surveillance optical surface quality requirements. Deposit AR or customized functional coatings inside vacuum chamber based on target wavelength band and service environment. Full inspection for dimension, surface defects and coating performance; shock-resistant packaging prevents scratches during transit. We support small-batch prototype sampling and large-volume bulk manufacturing of custom BK7 surveillance glass dome. To receive an accurate formal quotation, please provide engineering drawing, order quantity, material requirements, coating specification, tolerance standard, surface quality grade, operating environment and inspection acceptance criteria. Sample lead time and bulk delivery cycle depend on dome geometric complexity, coating type and testing requirements. Standard simple dome models support rapid feasibility assessment; complex structural customized domes can arrange engineering communication to optimize design and control overall project cost. Projects adopt visible-light PTZ surveillance; balancing reliable optical performance and competitive cost under standard outdoor climate conditions. The dome faces frequent sand abrasion, repeated cleaning, severe marine salt fog and requires extreme scratch-resistant performance. The optical system requires ultraviolet transmission or continuous operation under high-temperature extreme environments. Yes. We accept drawing customization for outer diameter, spherical radius, wall thickness, flange structure and optical clear zone. Visible AR coating can deliver ≥94% single-side transmittance; exact value depends on wavelength range and glass thickness. Share your spectrum requirement for formal quotation. BK7 features stable chemical properties. Matched AR and AF coating can effectively resist rain, dust and conventional outdoor climate erosion for surveillance equipment. Please provide engineering drawing, material option, dimension parameters, coating requirements, order quantity, application environment and inspection acceptance standard. Yes, we offer prototype sampling service. Sample lead time varies based on dome shape complexity and coating process, contact our engineering team to confirm timeline. Share your surveillance application scenario, dome engineering drawing, coating specifications and target order quantity. Felix Glass will evaluate manufacturability, inspection items and provide formal quotation for custom AR coated BK7 PTZ optical dome cover.
BK7 spherical optics for outdoor PTZ surveillance housings
AR Coated BK7 Optical Dome Cover | High Transmittance Custom PTZ Security Glass Dome
Engineering pain points we resolve
Common Challenges In Surveillance Optical Dome Projects
Direct answer
Engineering Challenges Solved By AR Coated BK7 PTZ Optical Dome
Precision Polished BK7 Substrate
High-Transmission AR Coating
Drawing-Driven Custom Production
Attention to specification
Material & Coating Technical Details For Engineering Review
Interest stage
Key Product Specifications For AR Coated BK7 PTZ Optical Dome
Product type
AR Coated BK7 spherical optical dome for PTZ speed dome security camera
Model reference
FG-DOME-BK7-PTZ02
Material
BK7 / K9 optical glass; Sapphire & fused silica available as upgraded alternatives
Functional coating
Visible light AR coating; optional AF anti-fouling, anti-fog multilayer film optimized for outdoor surveillance
Custom Manufacturing
Custom diameter, spherical radius, wall thickness, flange edge, polishing grade and inspection standards
Quality Inspection
Dimensional tolerance testing, surface defect screening, transmittance and coating uniformity verification before shipment
Application match
Main Application Scenarios For BK7 PTZ Security Optical Dome
Outdoor PTZ Speed Dome Cameras
Highway & Traffic Enforcement Monitoring
Outdoor Industrial Machine Vision
Desire stage
Felix Glass RFQ & Production Workflow For PTZ BK7 Optical Dome
Drawing Evaluation
Blank Material Preparation
Grinding & Optical Polishing
Vacuum Optical Coating
Inspection & Shockproof Packing
Original capability retained
From Prototype Sampling To Mass Production For PTZ Optical Dome
Decision support
Select BK7 / Sapphire / Fused Silica Dome For Your Surveillance Project
Choose BK7 / K9 Dome When
Upgrade To Sapphire Dome When
Select Fused Silica Dome When
Related optical dome & protective window products
Internal Links For Optical Product Cluster Comparison
Buyer FAQ
Frequently Asked Questions About AR Coated BK7 PTZ Optical Dome
Can dome diameter and spherical radius be customized?
What transmittance can visible AR coating achieve?
Is BK7 dome suitable for all-weather outdoor PTZ cameras?
What data accelerates quotation progress?
Can you supply small batch prototype samples first?
Action stage
Submit Your PTZ Dome Drawing For Engineering Assessment & Quotation
